Description:

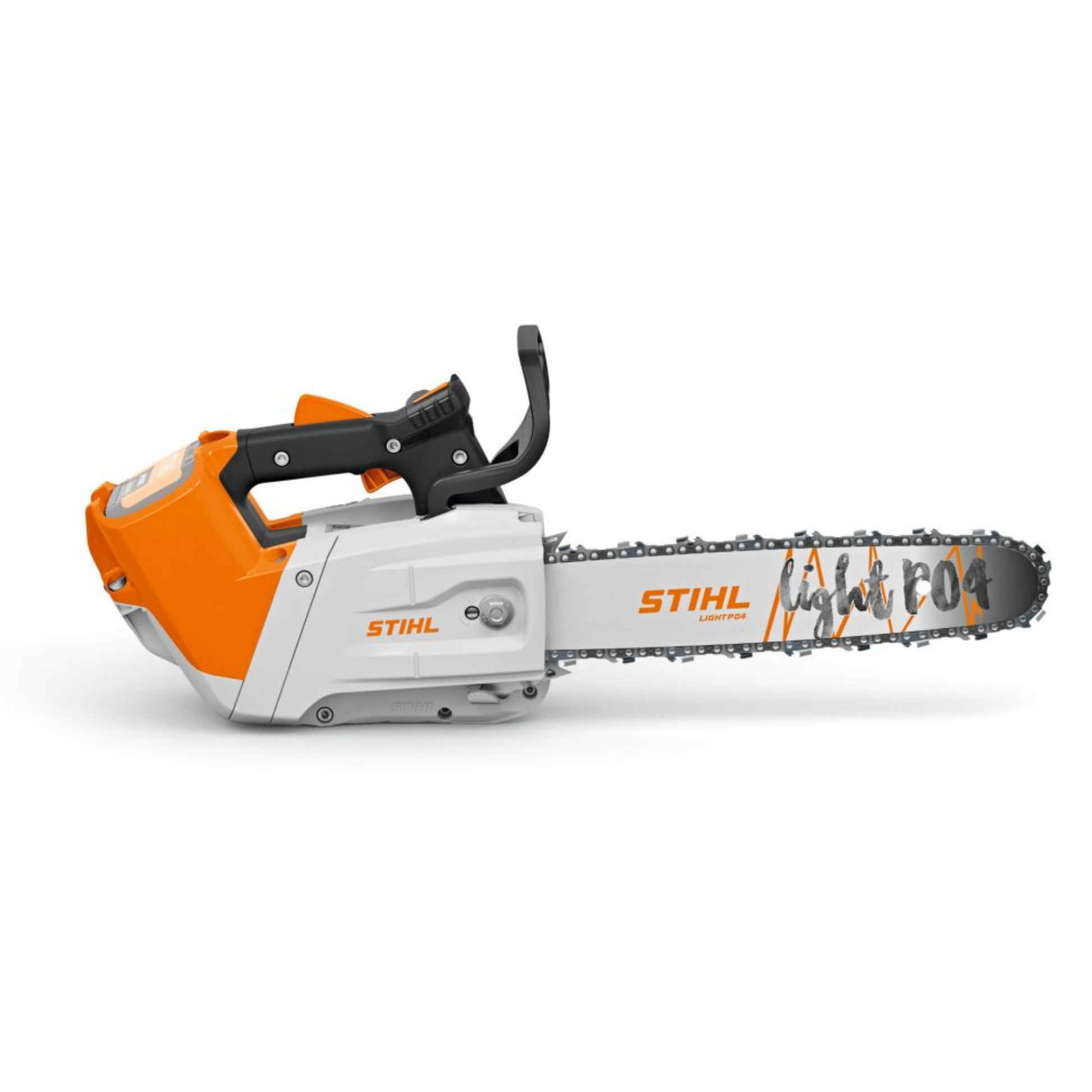

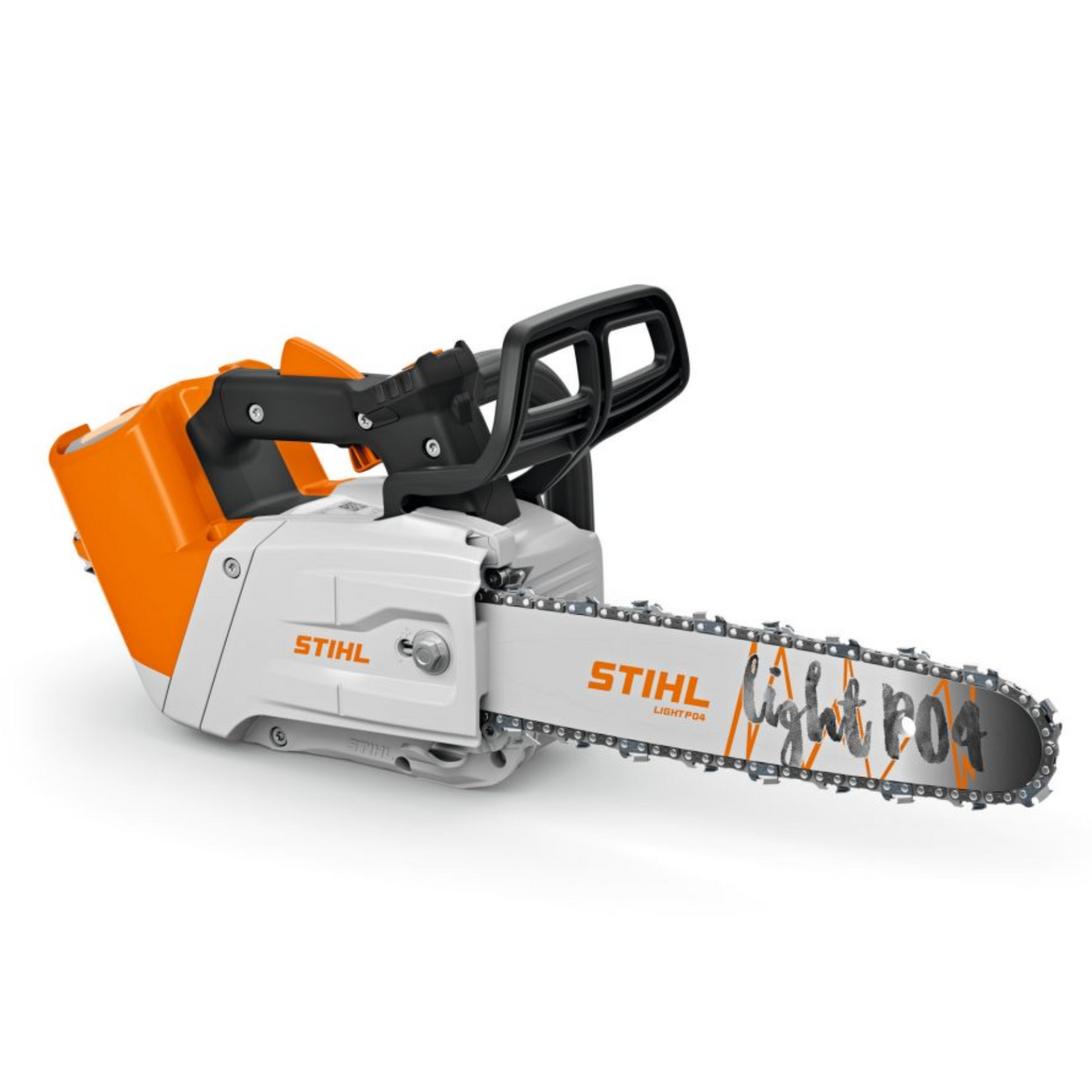

The MSA 220 T is STHL’s most powerful cordless top-handle saw to date. This professional arborist saw is ideal for removing pieces of trunk, crown correction, or removing dead wood.

It has an electronic trigger system with an unlock button for simple saw activation, which leads to easy operation and the LED display on the top handle also shows information on the operating status of the chainsaw, as well as the chain break position.

With an easy-to-clean air filter for long service life and optimum engine cooling, excellent cutting performance, side-mounted chain tensioning, tool-free oil tank cap, captive nut on the sprocket cover.

Must be used with AP 300 S or AP 500 S battery for full performance.

Exterior design of guide bar for MSA 220 T / MSA 220 TC-O are subject to change.

Features:

• Fold-Out Hook:
• Function: Serves as a carrying rope attachment for lowering the arborist saw and for security. When not in use, it folds away to avoid interfering with work or storage.
• Fleece Filter:
• Performance: Ensures consistent operation even in extreme conditions by filtering out very fine dust and dirt from the power electronics and electric motor.
• Maintenance: Clean by spraying with STIHL Varioclean, allowing it to work briefly before rinsing with warm water and letting it dry.
• Intuitive Controls and Bright LED Display:
• Controls: Features three speed settings that limit chain speed to 20, 24, or 30 m/s to optimize battery life for various tasks.
• Display: Shows status of the chain brake and temperature warnings in red for clear, real-time information.
• Side-Mounted Chain Tensioning:
• Function: Allows for easy and quick chain tensioning and replacement while protecting the tensioning screw and preventing loss of nuts during changes.
• Secure Cutting Attachment Change:
• Feature: Prevents losing nuts on the sprocket when changing the cutting attachment, enhancing ease of maintenance and operation.

Specifications:

• Bar Length:
• 30-35 cm (12-14 inches)
• Rated Voltage:
• 36 V
• Weight:
• 2.7 kg (6.0 lbs)¹
• Sound Pressure Level:
• 94 dB(A)²
• Sound Power Level:
• 104 dB(A)³
• Vibration Levels (Left/Right):
• 3.0 / 3.4 m/s²⁴
• Saw Chain Pitch:
• 3/8"P
• Recommended Battery:
• AP 300 S
• Battery Working Time:
• With AP 100: up to 8 min⁵
• With AP 200: up to 16 min⁶
• With AP 300 S: up to 29 min⁷
• With AP 500 S: up to 34 min⁸
• With AR 2000 L: up to 109 min⁹
• With AR 3000 L: up to 174 min⁹
• IPX Rating:
• IPX4
