Description:

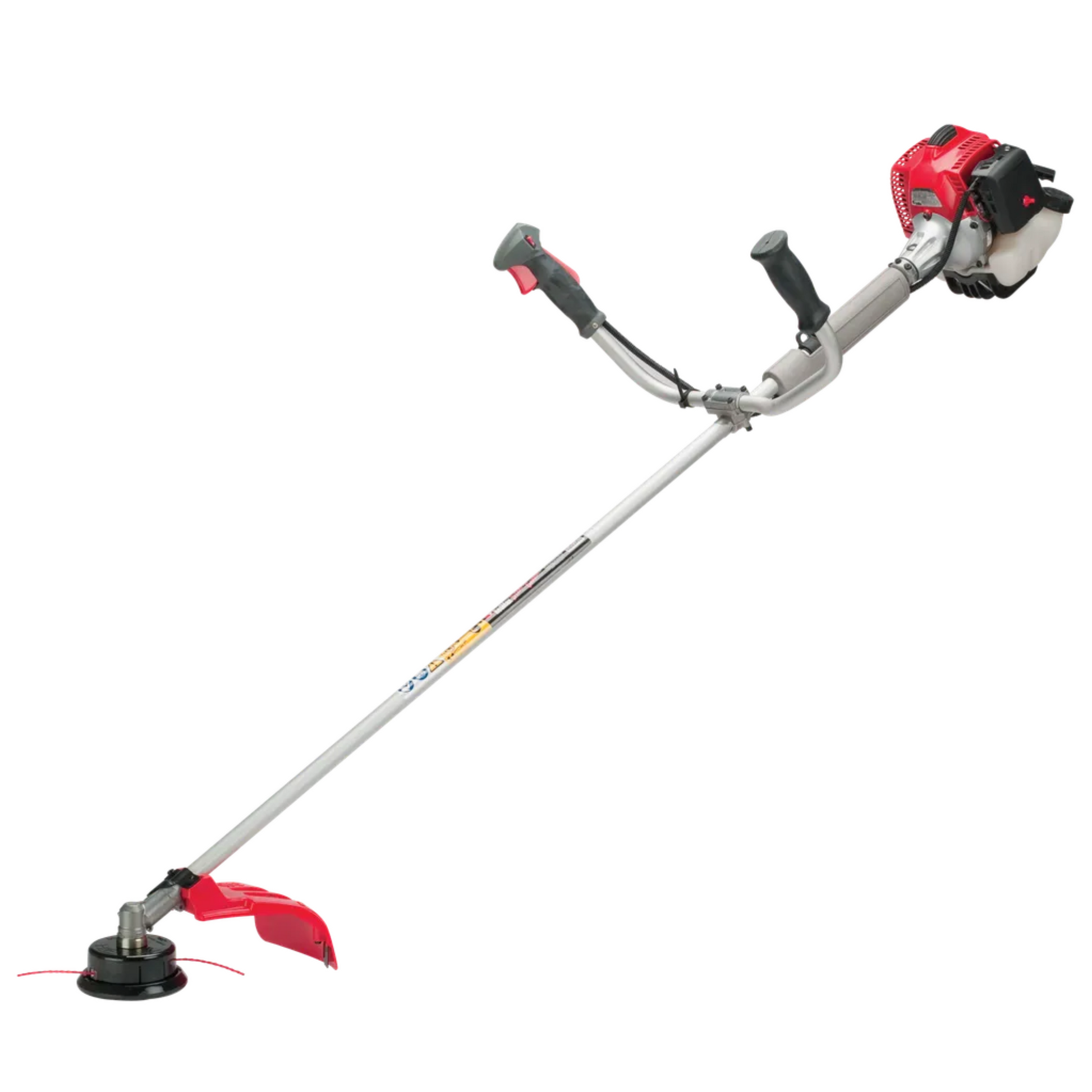

RedMax brushcutters are designed around the needs of professionals in the landscaping community. The BCZ3050SW features a Strato-Charged 2-stroke engine that produces ultra-low emissions with high power output. Its 29.5 cc, 1.4 horsepower engine is combined with a die-cast aluminum housing for maximum heat dissipation for a longer life. A solid steel drive shaft connects to a gearbox with zerk fittings, so it is easy to lubricate and maintain. And the BCZ3050SW has a vibration-reduction system built into the fan housing to reduce operator fatigue and allow you to work longer. Bike handles with throttle control improve ergonomics for the operator.

Features:

• Strato-Charged® Engine

Specification:

• Model: BCZ3050SW
• CARB Compliant
• Article Number: 966 33 68‑01

Engine Characteristics:

• Cylinder Displacement: 1.8 cu.in (29.5 cc)
• Clutch Engagement Speed: ±4,000 rpm
• Electrode Gap: 0.04 in (1.0 mm)
• Fuel Consumption: 508 g/kWh
• Fuel Tank Volume: 24.3 fl oz (720 ml)
• Idling Speed: 3,000 rpm
• Maximum RPM Output Shaft: 8,208 rpm
• Power Output: 1.4 hp (1.04 kW)
• Spark Plug: NGK CMR7H-10
• Torque (Max.): 1.37 Nm
• Torque (Max.) at RPM: 5,500 rpm

Product Data:

• Drive Gear Angle: 60°
• Gear Ratio: 1.462

Emission:

• Exhaust Emissions (CO Average) CARB: 277.3 g/kWh

Dimensions:

• Weight (Excl. Cutting Equipment): 12.76 lbs (5.8 kg)
