Description:

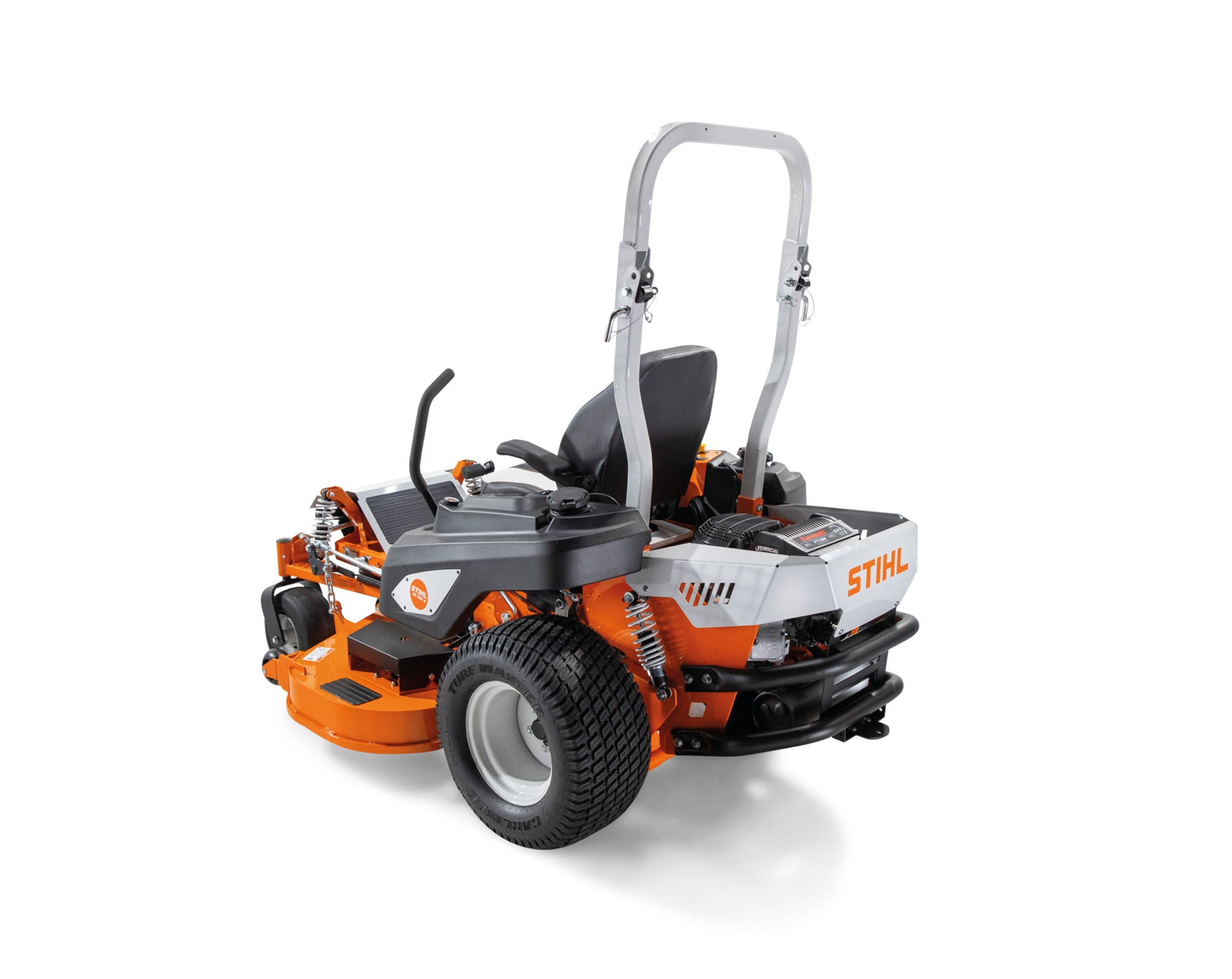

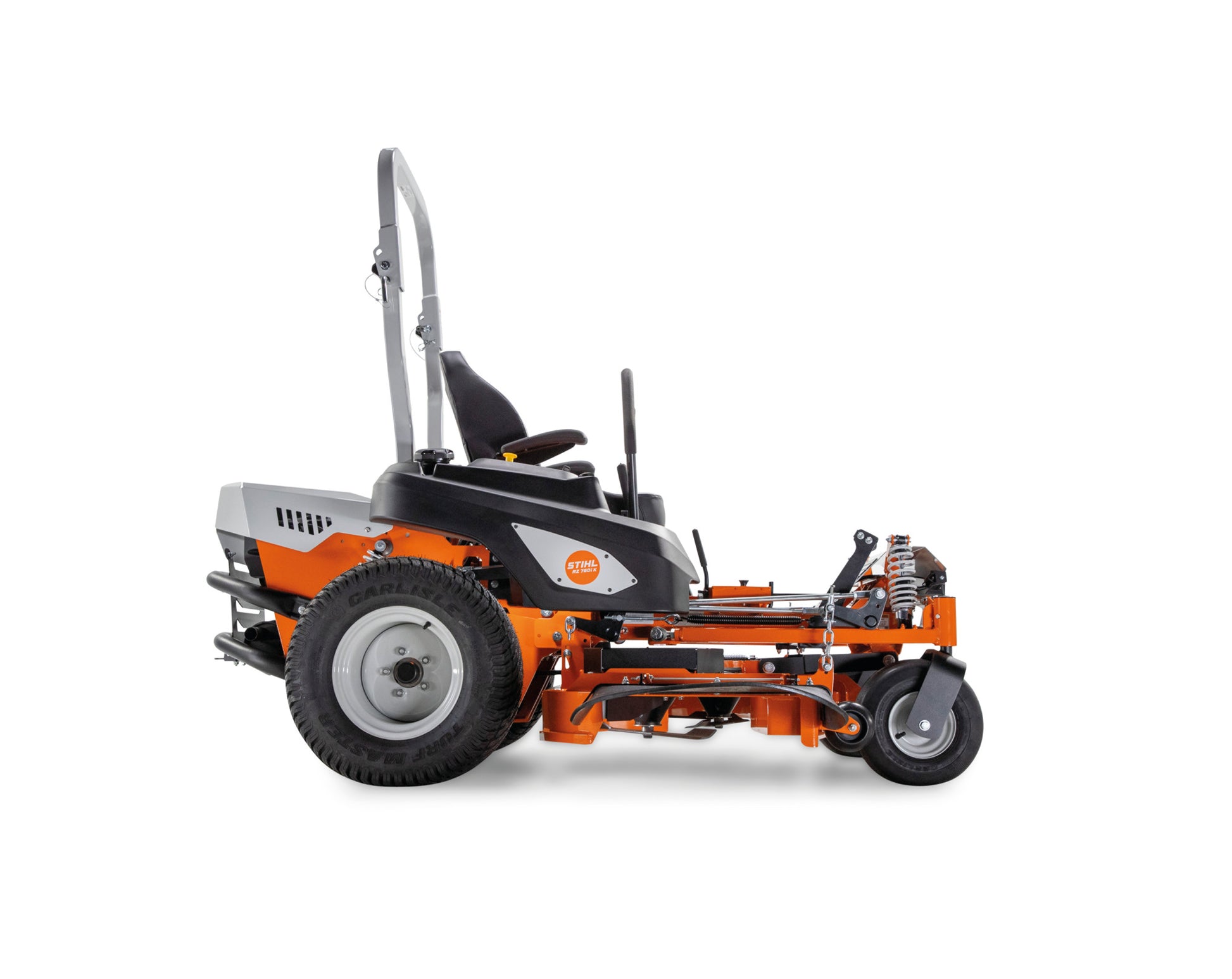

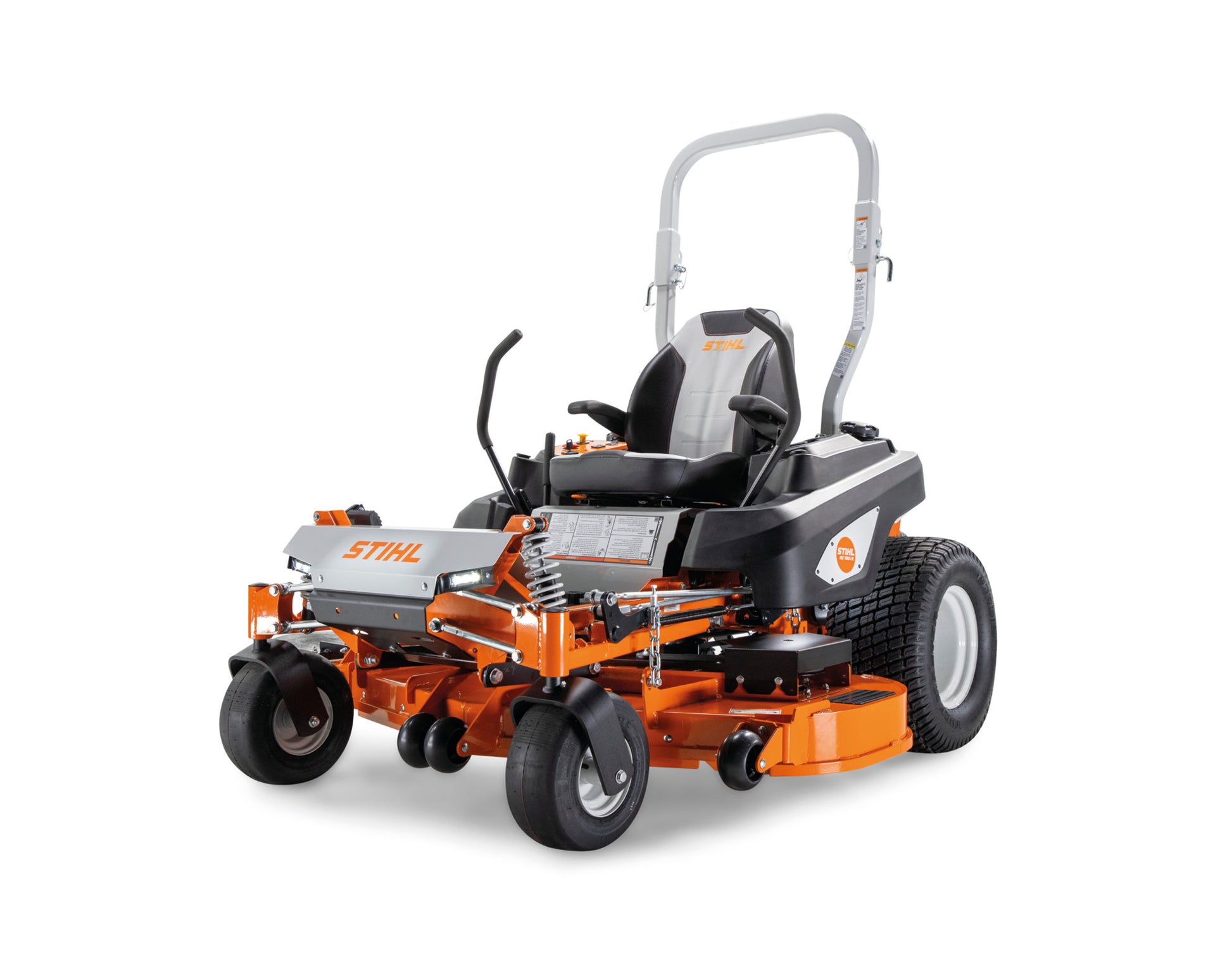

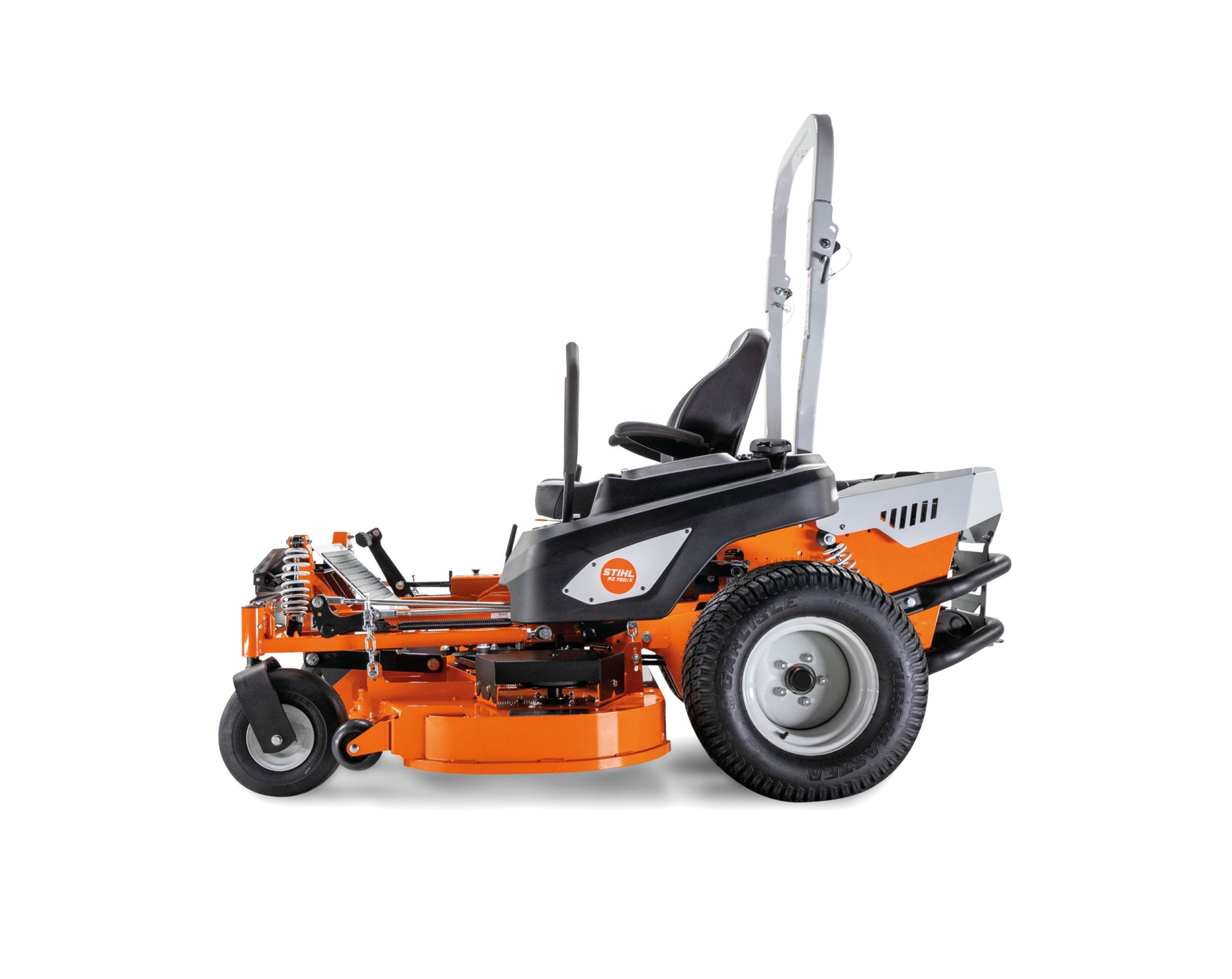

Enjoy a smooth ride and take on tough jobs with the STIHL® RZ 760i zero-turn mower featuring an innovative suspension system with mowing deck height compensation and a 60" mowing deck for wide cutting swaths. The Vanguard® Electronic Fuel Injection (EFI) engine with Oil Guard™ System provides reliable operation.

Features:

• Vanguard® Oil Guard™ System – Vanguard® Oil Guard™ System features a separate oil tank, transferring cool oil to the engine—helping oil last longer, increasing working times, and allowing for less maintenance.
• Commercial-Grade Hydro-Gear® ZT-4400 Transaxles – Hydro-Gear® ZT-4400 transaxles enable 10 mph forward ground speed and 5 mph in reverse, helping allow for smooth and efficient cutting.
• Heavy-Duty 8” Cast Iron Greaseable Mower Deck Spindles – The STIHL® RZ 700 Series’ eight-inch cast iron greaseable mower deck spindles are easy to maintain.
• Deluxe Seat with Armrests – Deluxe seating includes armrests to ensure a comfortable ride throughout the job.
• Large Fuel Capacity – With a fuel gauge visible from the operator's seat, users can monitor fuel level and cover large jobs efficiently; the wide opening also makes fueling easy.
• Four-Wheel Suspension System with Independent Front Suspension and Rear Shock Absorbers – Adjustable to suit your yard’s terrain, the rear suspension uses shock absorbers to stabilize the machine for consistent cutting height and a smooth, comfortable ride.
• Independent Front Suspension with Mower Deck Height Compensation – Front suspension features two control arms connected to shock absorbers to help keep wheels perpendicular to the ground throughout travel.
• Swingarm Rear Suspension with Shock Absorbers – Adjustable rear suspension with shock absorbers supports comfort and performance on uneven terrain.
• Efficient Two-Belt Mower Drive System – Reduces belt strain and flex, enabling cooler operation, longer belt life, and less maintenance.
• Two USB-A Ports – Provide 3.15 amps of power to charge devices.
• Roll Over Protection System (ROPS) – Advanced ROPS with polyurethane blocks helps prevent rattling and folds easily for storage and transport.
• Flip-Up Floor Pan – Allows convenient serviceability and deck cleaning.
• Foot-Operated Cutting Height – Enables height adjustment while seated.
• Dual-Function Hour Meter – Tracks run time and mowing time to assist with regular maintenance.
• Flexible Side Rubber Discharge Chute – Directs grass clippings away from the cutting path.
• Integrated Cup Holders – Secure drinks within reach.
• Trailer Hitch – Rear trailer hitch supports towing of accessories and attachments.
• *Accessories and attachments sold separately.
• Made in America – A majority of STIHL® products sold in America are made in America of U.S. and global materials.

Specification:

• Horsepower: 28 hp (20.9 kW)
• Fuel System: Electronic Fuel Injection (EFI)
• Fuel Tank Capacity: 11 gal (41.6 L)
• Displacement: 810 cc
• Transaxles: Hydro-Gear® ZT-4400
• Forward Ground Speed: 10 mph (16.1 km/h)
• Reverse Ground Speed: 5 mph (8 km/h)
• Deck Width: 60 in (152.4 cm)
• Mowing Height Range: 1.5 in – 5 in (38 mm – 127 mm)
• Deck Construction: Fabricated from 10-gauge steel with a 10-gauge doubler in the spindle area and 1/2" (12.7 mm) reinforcement plates on the leading edge
• Cutting Height Options: 13
• Blades: 3 - MARBAIN® Hardened
• Front Tires: 13 x 6.5-6
• Rear Tires: 24 x 12-12
• Weight: 1,406 lbs (637 kg)
• Power Source: Gas
• Engine Governor: Mechanical
• Lubrication System: Oil Guard™
• Spindle Shaft Diameter: 1 in (25.4 mm)
• Spindle Bearings: 2.5 in x 1 in (63.5 mm x 25.4 mm) Dual Ball Bearing
• Spindle Hubs: 7.9 in (20 cm) Cast Iron & Greaseable
• USB Amperage: 3.15 A
• Front Suspension Travel: 2.68 in (6.8 cm)
• Rear Suspension Travel: 2.68 in (6.8 cm)
